FR4 2 Layer Double Sided PCB Assembly Prototype Board Services
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/ISO14001/TS16949 |
| Model Number | CRT-SC-008 |
| Minimum Order Quantity | 200 Pieces |
| Price | USD 0.1~0.2/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 18 |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | FR4 Pcb Circuit Board | Solder Mask | Green. Red. Blue. White. Black.Yellow Etc |
|---|---|---|---|
| Test Service | 100% E-testing | Certificates | ISO9001/ISO14001/TS16949/UL |
| Surface Finishing | ENIG,OSP,HASL,Imm Tin,Imm Silver... | Service | One Stop Turnkey Service |
| Highlight | 2 Layer Double Sided PCB Assembly,FR4 Double Sided PCB Assembly,FR4 Double Layer PCB |
||
Product Description
FR4 2 Layer Double Sided PCB Assembly Prototype Board Services
Double Layer PCB Prototype Board Double Sided PCB Assembly Services
About Us:
1. Company Name: Croll Technology
2. Product Name: Double Sided PCB PCBA
3. MOQ: 1 Prototype
4. Certificate: ISO9001/ISO14001/TS16949
5. Service: EMS, OEM
6. PCB Assembly Process: DIP. SMT PCB Assembly
Features
1. One Stop OEM Service, Made in Shenzhen of China
2. Manufactured by Gerber File and BOM List from Customer
3. FR4 Material, Meet 94V0 standard
4. SMT, DIP technology suport
5. Lead Free HASL, Environmental Protection
6. UL, CE, ROHS Compliant
7. Shipping By DHL,UPS, TNT, EMS or Customer requirement
Specification:
|
Double Side PCB
|
Special Tech
|
|
|
Place of Origin:
|
China
|
1.Countersink;
2.Carbon;
3.Peelable mask;
4.Step Routing;
5.Mixed finishes;
6.ENEPIG
|
|
Brand Name:
|
CRT
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
|
|
Layer Count:
|
1~2L
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.6mm~3.0mm
|
|
|
Copper Thickness(oz):
|
Hoz~3oz
|
|
|
Size(mm):
|
5mm~1500mm
|
|
|
Min. LW/LS(mm):
|
0.1/0.1
|
|
|
Min. Hole(mm):
|
0.25
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|

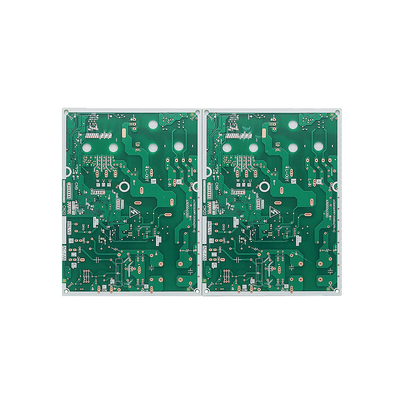

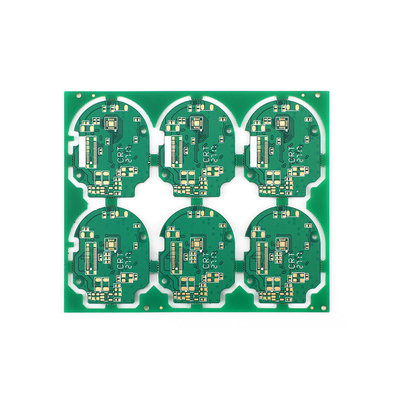

Product Image:
Why choose us?
1.Support customized
- A gobal independent distributors of electronic components
- Welcome OEM, ODM.
- A variety of channels to satisfy various demands
Most of them are in stock with very competitive price
2. Quality:
- Original :100% new and original factory packing. Rohs. No bulk, no refurbish, no obsolete.
3. For the faulty:
- Firstly, products are produced in strict quality control system by manaufacturer .
- For some defective batch products, we will send them to factory and resend them to you or we can discuss the real situation.
FAQ:
Q1:Are my PCB files safe when I submit them to you for manufacturing?
A:We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written. Permission from you, nor we'll share these files with any other 3rd parties.
Q2:No PCB file/Gbr file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q3:What is Chuante lead time?
A:Sample:
1-2 Layers: 5 to 7working days
4-8 Layers: 12 working days
Mass production:
1-2 Layers:7 to 15 working days
4-8 Layers:10 to 18 working days
The leadtime is depends on your final confirmed quantity.
