Gerber File Max 250x250mm Prototype PCB Assembly OEM Circuit Board
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/ISO14001/IATF16949 |
| Model Number | CRT-PPA-002 |
| Minimum Order Quantity | 1 piece |
| Price | USD 1.32 ~ USD2.12/piece |
| Packaging Details | Vacuum package+Carton box |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 50000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Maximum Size | 250x250mm | PCB Minimum Size | 20x30mm |
|---|---|---|---|
| PCB Minimum Thickness | 0.2mm | Minimum Gap | 0.5mm |
| Minimum BGA | 0.2mm | Maximum Component Size | 55mmx55mmx15mm |
| Highlight | 250mm Prototype PCB Assembly,Gerber File Prototype PCB Assembly,250x250mm OEM Circuit Board |
||
Product Description
Gerber File Max 250x250mm Prototype PCB Assembly OEM Circuit Board
Need To Supply Gerber File For OEM Circuit Board PCBA Prototype PCB Assembly
Why Choose Us:
1. Turnkey: PCB manufacturing, components sourcing and in-house assembly, whole project management available
2. Quick-turn prototyping: support from 1 pc for prototype, enable you to go from design to fuctinon prototype faster with confidence
3. On-demand fabrication: agile fabrication process meets demand, experienced team offers fantastic experience
4. Strong supply chain management: deep cooperation with 4000+ original electronic components manufacturers and therir authorized agents and distributors
Specification:
| |||||||||||||||||||||||||||||||
SMT Production Process:
1.Components checking
2. Solder paste printing
3. Pick & place SMD parts
4. Reflow soldering
5. Flipping
6. Pick & place SMD parts
7. THT components placement
8. Wave soldering(hand soldering)
9. AOI checking/X-ray
10. Visual inspection(repairing)
11. QC/Package
12. Delivery

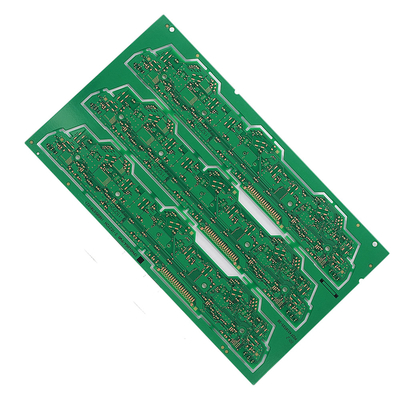

Product Image:
