2 Layer Oem Thick Film Pcb Circuit Board Electronical
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL |
| Model Number | CRT-Thick Film PCB-001 |
| Minimum Order Quantity | 10 Pieces |
| Price | USD 0.1~1.5/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 7 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer Count | 2 Laye | Matierial | FR4 .CEM1,CEM3,PI,FCCL |
|---|---|---|---|
| Copper Thickness | 0.3oz~1 Oz | Solder Mask | Green, Yellow, Blue, Black... |
| Surface Finish; | ENIG,OSP,HASL,Imm Tin,Imm Silver... | Certificate： | RoHS/ISO9001/ISO14001/UL |
| Highlight | 2 layer thick film pcb,electronical thick film pcb,oem thick film circuit board |
||
Product Description
Product Description:
1.product name:Multilayer Printed Circuit Board
2.Type--Thick Film PCB
3. Matierial:FR4,CEM1
4.Surface Finish:ENIG,OSP,HASL,Imm Tin,Imm Silver...
5. Board Thickn:0.6mm~1.0mm
6. Certificate:RoHS/ISO9001/ISO14001/UL
7.Application Segment:Auto,Industrial,Medical,DataCom,Comsumer
Thickfilm PCB Application
1. Applications in automotive electronics:
(1).Ignition module: used to start the motor
(2). Voltage regulator module (Voltage regulator): for generators
(3). Idle Motor Module: Idle Motor Control
(4).Thick film resistor for fuel level: Both cars and locomotives
(5). Thick film current limiter: for fan motor current limiter (Blower resistor)
(6).Mass Air Flow Sensor
(7). Various types of thick film printed circuit boards:
●Throttle valve control (TPS)
●Clutch switch (Rotary position sensor)
●Wiper motor speed adjustment
Body Balance (ALS)
●Accelerator pedal PCB
●Dashboard temperature control, lighting adjustment...etc
2. Industrial control/communication and defense industry applications:
(1). Signal conversion
(2). Frequency converter/motor control
(3). Industrial control
(4).Precision resistance
(5). Anti-lightning resistance
(6). High voltage/high watt resistance
(7).Accept customer entrusted design
Specification:
| Thickfilm PCB | Special Tech. | |
| Place of Origin: | China | 1.Silver Circuit 2.Silver TH 3.High Risitor 4.Could be in a round surface |
| Brand Name: | CRT | |
| Application Segment: | Auto,Industrial,Medical,DataCom,Comsumer | |
| Layer Count: | 1-4L | |
| Matierial: | FR4,CEM1,Metal Base | |
| Board Thickness(mm): | 0.2mm~3.0mm | |
| Copper Thickness(oz): | 0.33oz~2oz | |
| Size(mm): | 2mm~500mm | |
| Min. LW/LS(mm): | 0.2/0.2 | |
| Min. Hole(mm): | 0.2 | |
| Solder Mask: | Green, Black, White... | |
| Surface Finish: | ENIG,OSP,Imm Tin,Imm Silver... | |
| Certificate: | RoHS/ISO9001/ISO14001 | |
| Service: | OEM / DFM | |

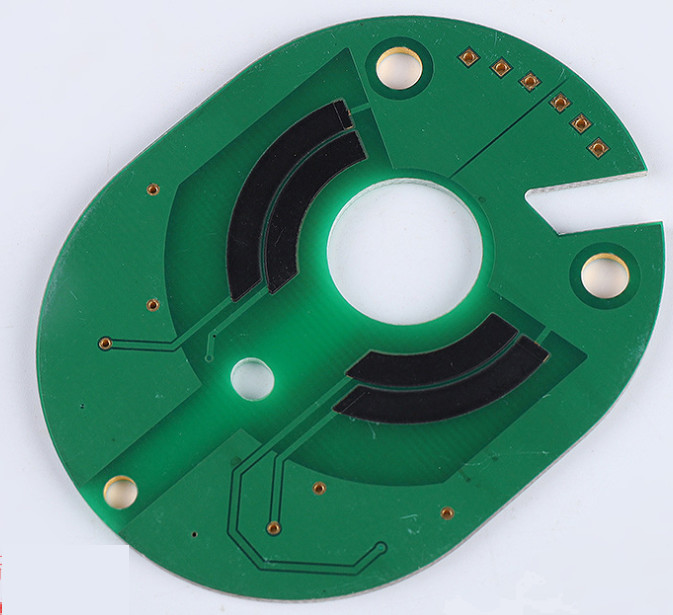

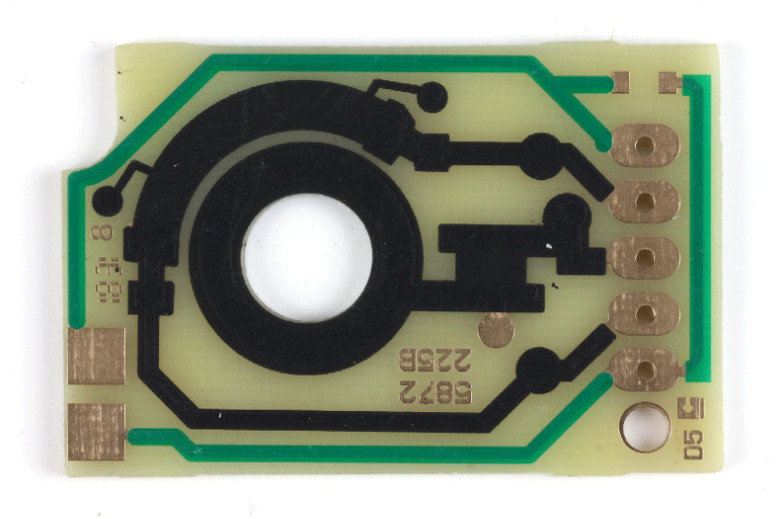

Product Image:
Why choose us?
Our Advantage:
1.Support customized
- A gobal independent distributors of electronic components
- Welcome OEM, ODM.
- A variety of channels to satisfy various demands
Most of them are in stock with very competitive price
2. Quality:
- Original :100% new and original factory packing. Rohs. No bulk, no refurbish, no obsolete.
3. For the faulty:
- Firstly, products are produced in strict quality control system by manaufacturer .
- For some defective batch products, we will send them to factory and resend them to you or we can discuss the real situation.
